Integrated science and planning leads to flexible consent

Boffa Miskell ecologists helped develop an Adaptive Management Framework for managing the environmental impacts of maintenance on the Auckland Harbour Bridge.

The purpose of the Adaptive Management Framework is to enable the maintenance of the Auckland Harbour Bridge, while managing the effects to the environment below an agreed-upon threshold with the aim of reducing contaminant discharges over time.

The new adaptive approach was developed as the basis for a flexible consenting framework that focuses on achieving high standard outcomes in relation to the environmental impacts of bridge maintenance, especially on the marine environment.

Location

Auckland

Project team

Sharon De Luca
John Watt

Worked with

Air Matters
Auckland Harbour Bridge Alliance
Beca
Opus
Waka Kotahi NZ Transport Agency

Project date

2011 - 2015

Awards

Best Practice Award | Excellence in Integrated Planning | NZPI Annual Awards
Merit Award | ACENZ INNOVATE Awards

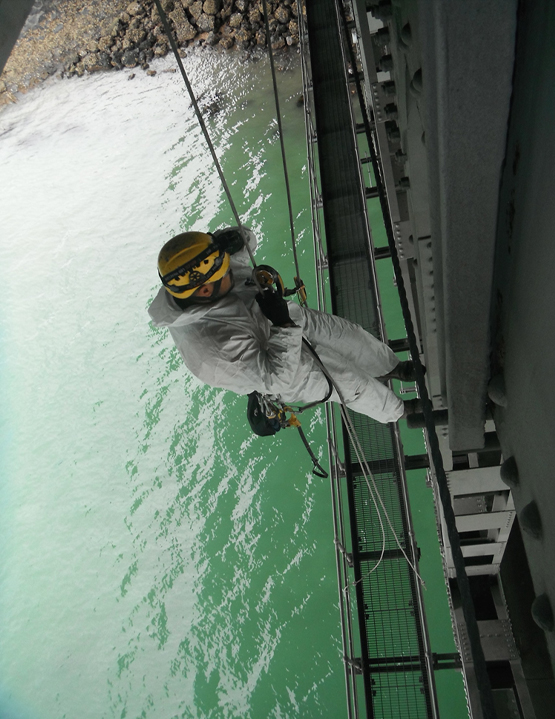

Being a predominantly steel structure, the Auckland Harbour Bridge requires continual maintenance over an area of 125,000m2, with about 10% of the bridge undergoing maintenance each year. Maintenance of the surface of the bridge results in various contaminants entering the marine environment. Maintenance activities include water jetting, wet and dry abrasive blasting, application of coatings (primers, rust inhibitors and paints) and minor structural works such as metal welding and concreting. Discharge of various contaminants from these maintenance activities occurs to air, marine waters and the surrounding land and requires resource consent under the New Zealand Government 1991, Resource Management Act (RMA).

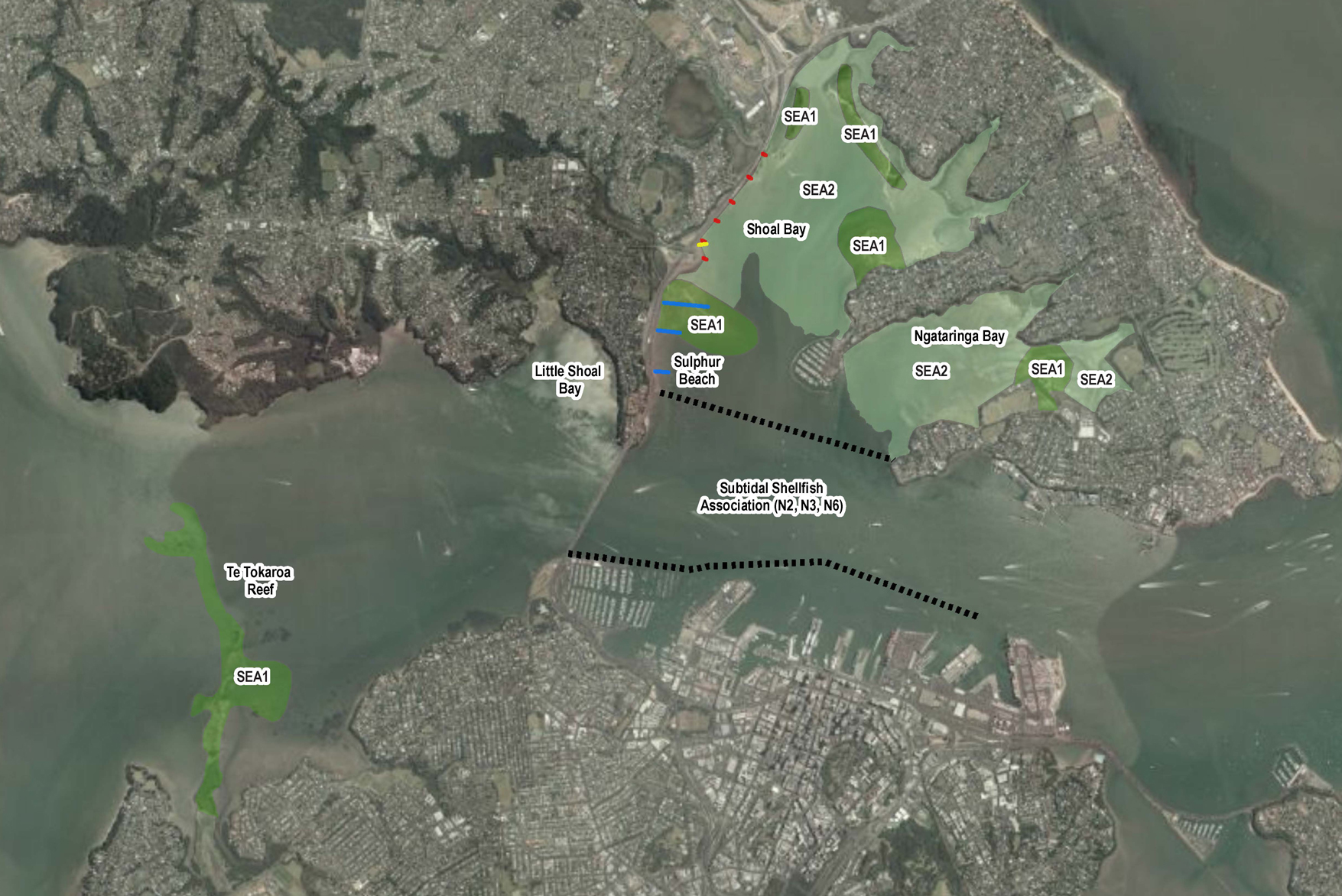

Our ecology team assessed the effects of these various contaminants on the marine environment, as part of the development of a consenting framework.

The previous consent process limited the use of innovative and environmentally friendly methods of bridge maintenance. The Auckland Harbour Bridge Alliance formed a multi-disciplinary team to create a flexible consenting framework that focuses on outcomes as opposed to prescribing methods while retaining a high level of environmental success. The integrated team of experts from planning, science and operations led to the development of a regime that enables operators to adopt new and innovative methods while improving performance outcomes.

When the project was completed in 2015, it was estimated that the adaptive management framework would save the NZ Transport Agency around $65 million over the next 10 years.
